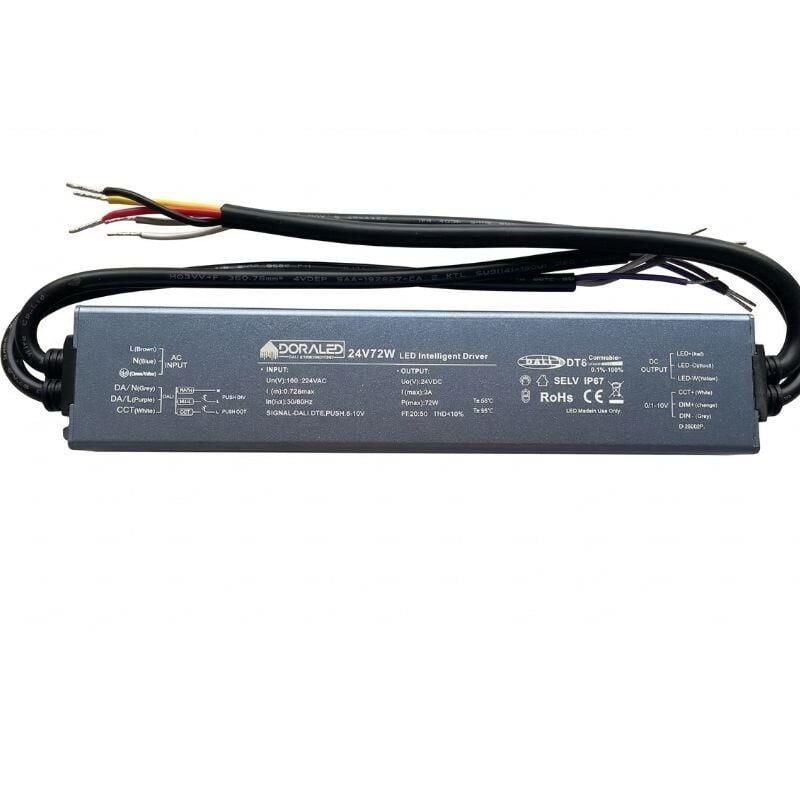

DC24V 72W 3A DALİ DİM DT8, PUSH DİM ,0-10 DİM CCT İP67 TUNABLE
Ürün Ölçüleri:20*4*2,5cm
LED Intelligent CT Driver (CV)
DALI-2 DT6/DT8, DIM and color temperature adjusting driver
Dimming range: 0~100%, LED start at 0.1% possible.
Color temperature adjusting range: 2700-6500K
2 independently SELV constant voltage output channels
High Efficicient driver: PF>0.96, THD<10%
0-100% flicker-free, High frequency exemption level.
DIM/CCT interfaces: DALI-2 DT6/DT8 /0-10V,1-10V,
1 0 V P W M , R E SISTANCE DIM
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W Constant power design, adjust different color temperature to keep the same brightness.
Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
IS 15885(Part2/Sec13) Up to 50000-hour life time.
